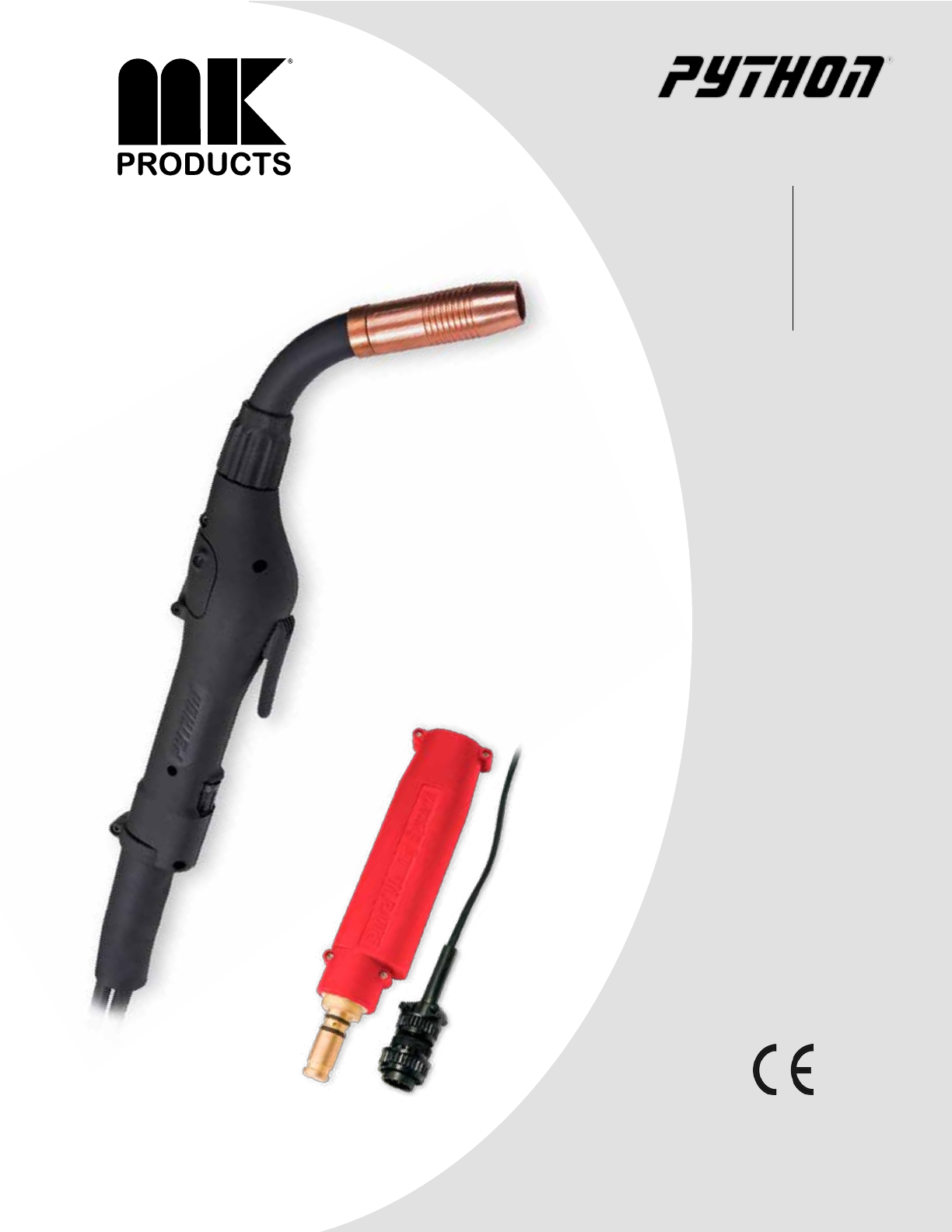

Product: PythonManual: 091-0618Serial: 09020001Voltage Rating: 24 VDCRevision: Feb 2009Gun models: 232-835Lincoln Compatible™Owner’s Manual225 Amper

Python® Lincoln Compatible™ Owner's Manual - Page 2Controls and SettingsPotentiometerThe laterally-positioned potentiometer is located in the low

Python® Lincoln Compatible™ Owner's Manual - Page 3table top, with the other hand give the Removal Tool a quick snap-turn in the CLOCKWISE DIRECT

Python® Lincoln Compatible™ Owner's Manual - Page 4Trigger Kit...

Python® Lincoln Compatible™ Owner's Manual - Page 5 Barrel AssembliesAll barrels are rated at 100% duty cycle BarrelsAir CooledThe Python® Linc

Python® Lincoln Compatible™ Owner's Manual - Page 6Maintenance ToolsTool Part NumberContact Tip Removal Tool 931-0002Drive Roll Removal Tool 931-

Python® Lincoln Compatible™ Owner's Manual - Page 7Section E TroubleshootingTrouble Cause RemedyNo wire feed at gun, feeder not operati

Python® Lincoln Compatible™ Owner's Manual - Page 8AFGEDCB"W" ClockedAmphenol ConnectorViewed from front of connectorTroubleshooting Gu

Python® Lincoln Compatible™ Owner's Manual - Page 9Section F AppendicesPython® Lincoln Compatible™ Diagrams / Parts ListExploded View ...

Python® Lincoln Compatible™ Owner's Manual - Page 10Python® Lincoln Compatible™ Head AssemblyAPPLY THREAD LOCKING COMPOUND TO CONTACT SURFACE FOR

Python® Lincoln Compatible™ Owner's Manual - Page 11Python® Lincoln Compatible™ Head AssemblyNo. Qty. Part No. Description No. Qty. Part No. Des

Python® Lincoln Compatible™ Owner's Manual - Page 12Python® Lincoln Compatible™ Front Body AssemblyNo. Qty. Part No. Description1 - -Not availabl

Python® Lincoln Compatible™ Owner's Manual - Page 13Python® Lincoln Compatible™ Barrel AssemblyP/N 003-2272*Apply silicone lubricant to items 4 a

Python® Lincoln Compatible™ Owner's Manual - Page 14Python® Lincoln Compatible™ Rear Body AssemblyNo. Qty. Part No. Description1 - - Not availabl

Python® Lincoln Compatible™ Owner's Manual - Page 15Python® Lincoln Compatible™ Lead Assembly Python® Lincoln Compatible™ Lead AssemblyNo. Qty. P

Python® Lincoln Compatible™ Owner's Manual - Page 16Python® Lincoln Compatible™Power Pin Adapter AssemblyP/N 003-2346Python® Lincoln Compatible™

Python® Lincoln Compatible™ Owner's Manual - Page 17Python® Lincoln Compatible™Power Manifold AssemblyP/N 003-2337Python® Lincoln Compatible™ Po

Python® Lincoln Compatible™ Owner's Manual - Page 18AFGEDCB"W" ClockedAmphenol ConnectorViewed from front of connectorECABDGF+-TORCHMOT

Python® Lincoln Compatible™ Owner's Manual - Page 19Safety Warnings

Python® Lincoln Compatible™ Owner's Manual - Page 20

August 1, 2008LIMITED WARRANTY - MK Products Inc., Irvine, California warrants that all new and unused equipment furnished by MK Products is free from

Table of ContentsSafety Considerations ...i-iiiInstallation ...

16882 Armstrong Ave.Irvine, CA 92606Tel (949)863-1234 Fax (949)474-1428www.mkproducts.com

Declaration of Conformity forEuropean Community (CE) Products Note This information is provided for units with CE certication (see rating label on u

Python® Lincoln Compatible™ Owner's Manual - Page iSAFETY CONSIDERATIONSELECTRIC ARC WELDING EQUIPMENTCAUTION : READ BEFORE ATTEMPTING INSTALLATI

Python® Lincoln Compatible™ Owner's Manual - Page iiusing protective equipment.Water-lling just below working level may substitute for inerting.

Python® Lincoln Compatible™ Owner's Manual - Page iiiA. Burn ProtectionComply with precautions in 1-2.The welding arc is intense and visibl

Python® Lincoln Compatible™ Owner's Manual - Page 1Section A InstallationTechnical SpecicationsWire Capacity.030" - .045" (0.6mm -
